industrial touch panel pc from China manufacturer

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: EB-14FT

Graphics Card: Integrated

Display Screen Size: 15"

Processor Type: Intel

Brand Name: RESUN

HDD Capacity: 40GB

Drive Type: Others

RAM Capacity: 2GB

Display Type: LCD

10 inch Touch Screen PC with 2G RAM - 16G SSD - WiFi - S-ATA

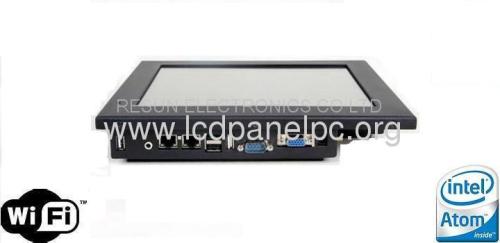

This fanless panel PC run on windows,linux etc, built-in a low power Intel Atom N270 CPU, with top quality SSD driver technology and 10 inch HD anti-pressure LCD touch screen, EB-14FT was designed in aluminium body, which feaured in slim design, Built-in W-LAN(Wi-Fi) module can get easy access to the Internet if no LAN network available somewhere.

This industrial touch screen panel computer are made for the use in many industries, in banking service, machine control, in the automation, in the digital signage field etc...

10 inch Industrial Touch Screen PC with 2G RAM - 16G SSD - WiFi - S-ATA

O/S	Linux Ubuntu 10.04 preinstalled, drivers for Windows/Linux operatingsystems included
CPU	Intel Atom N270 (1x 1.6GHz), 533MHz Front Side Bus
Chipset	North Bridge: Intel 945GSE; South Bridge: Intel ICH7M
Memory	1x2GByte DDRII SODimm
Hard Drive	16GByte S-ATA SSD Hard Drive
Graphic	GMA950 Graphics Card
Audio	Realtek ALC662, 5.1 Channel High Definition Audio Codec 2x 2W loudspeaker
Network	Realtek 8111C,2x10/100/1000Mbit RJ45 Ports
USB	6x USB 2.0 ports, 4 as external
External Connectors	VGA D-Sub 15-PIN
	4xUSB 2.0, 2xCom-Port (Internal connected)
	2xRJ-45
	Audio-In/Audio-out
	W-LAN-Antenna connectors
	Power On/Off
	2x 12V DC-In (1x screwable)
Internal I/O Connectors	1x MiniPCI-E (W-Lan card with Intel 4965 Chip integrated)
	2x S-ATA 300MB/s ports
	1x Front Panel Audio header (used for loudspeaeker)
	4x USB 2.0 header (2x used for external connector)
	3x COM/RS232 header COM1, COM2 used as external connectors COM2 switchable between RS232/RS485 via jumper JP3
	1x front panel header
Input voltage	12V DC-In
